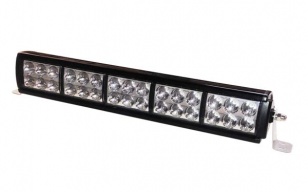

20 inch SP LED Bar

$199.95
$159.95

Details & Product Specs

LED Chip: Our SP LED bars use 3W Osram LEDs for great output at an affordable price. Each LED is driven at 300 Lumens per bulb. The Osram Olson SSL LED will retain 96% of it's output after 20,000 hours of use! Each LED is perfectly placed on the circuit board for a perfect beam inside each reflector.

Housing: The lightweight aluminum housing can be mounted just about anywhere. A nearly indestructible polycarbonate provides serious protection from rocks and bushes. All this and it's IP67 waterproof so it can be submerged up to 1 meter for 30 minutes without getting water in the housing. Integrated heat sink dissipates heat so the LEDs stay cool even in the hot desert.

Thermal Heat Management:
Built in circuitry to regulate the output if conditions get too hot.

Technical Specs:
Actual Output: 9000 Lumens
Size: 20" x 3.3" x 3.6"
Wattage: 90W
Number of LEDs: 30
Beam Pattern: Spot / Flood / Combo
LED Color: 5700K
EMC, ECE and RoHS Approved
Salt Spray: 500H
Shock Proof
Operating Voltage: 9-30V DC
Over / Under voltage protection
Lifespan: 50,000 Hours

Warranty: 3 years

Wiring Harness:
Optional fused relay harness with integrated switch will allow use of up to 300W of lights via 2 outputs and up to 260W on a single output.

Customer Photos

There are no customer uploaded photos for this product yet.   Be the first to share your photos with other auto enthusiasts.   Click here to upload your photo.

Product Reviews

I tried the eBay LED bars and they have nothing on this bad boy. The spot light is a nice narrow spot and really puts all others to shame.

Your review here
Great output for the price. More than enough for my RZR.
